Cisco IP Phone 8800 Key Expansion Module

Cisco IP Phone 8800 Key Expansion Module

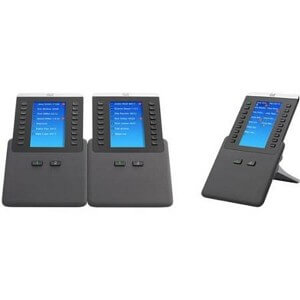

Cisco IP Phone 8800 Key Expansion Module extends the capabilities of Cisco IP Phone 8851 and 8861 models with additional buttons and a color LCD display. This key expansion module adds 18 physical keys with access to 18 additional keys, using the page keys, for a total of 36 additional keys. You can connect up to three Cisco IP Phone 8800 Key Expansion Modules to the IP Phone 8861, and up to two Cisco IP Phone 8800 Key Expansion Modules to the IP Phone 8851.



Description

Cisco 8800 Key Expansion Module Quick Specs

  • 4.3 inch, 16-bit color, backlit 480×272 pixel display
  • Expands your Cisco 8800 series IP phone with 18 additional physical keys
  • Supports two pages of 18 keys for a total of 36
  • Keys are illuminated with red/green colors and patterned flashing for line status

Compatibility

  • Compatible with Cisco 8851 and 8861 IP phones
  • Up to 2 Cisco 8800 Key Expansion Modules can be connected to the Cisco 8851 IP phone
  • Up to 3 Cisco 8800 Key Expansion Modules can be connected to the Cisco 8861 IP phone
  • Requires Cisco Unified Communications Manager Version 8.5(1) and later; Cisco Unified Survivable Remote Site Telephony (SRST) 8.0 (with Cisco IOS Software Release 15.1(1)T) and later
  • Requires Cisco IP Phone 8800 firmware 10.2(2) and later
