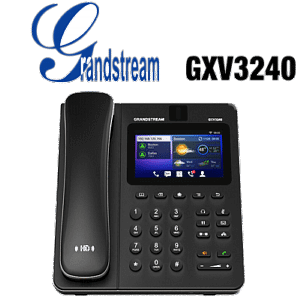

Grandstream GXV3240 IP Phone



Grandstream GXV3240 IP Phone

The Grandstream IP Phone GXV3240 combines a 6-line IP video phone with the power of a multi-platform video conferencing solution and the convenience of an Android smartphone to offer an all-in-one voice, video, data, and mobility solution. The GXV3240 is a 6-line IP multimedia phone with a 4.3” capacitive touch screen that runs the Android Operating System and therefore offers full access to the hundreds of thousands of Android apps in the Google Play Store – including business productivity apps such as Skype™, Microsoft Lync™, Salesforce1™, and GoToMeeting™.







Description

Grandstream GXV3240

The Grandstream IP phone GXV3240 features Gigabit ports, HD audio and HD video, a built-in web browser, integrated Wi-Fi for network flexibility, PoE, and a tiltable CMOS camera. The GXV3240 is compatible with the GXP2200 Extension Module, allowing for quick and easy access to up to 160 contacts at the touch of a finger. The GXV3240’s integrated Bluetooth allows users to sync the calendar and contact books on their mobile phones with the GXV3240, to use Bluetooth headsets, and to transfer calls to and from the phone to their mobile phones. By combining a state-of-the-art IP phone, an advanced video conferencing solution, and the Android operating system, businesses throughout the world can now use one IP Phone.

Grandstream GXV3240 Features

6-lines, 6 SIP accounts with support of 11 native languages

4.3” capacitive touch screen for a tremendous user experience

Android operating system 4.2 with full access to the hundreds of thousands of Android Apps in Google Play Store

Integrate with Grandstream’s GXV-series of IP video surveillance cameras to view live camera feeds and to receive alerts/alarms from IP cameras installed on the same network.

Phonebook with up to 1000 contacts, call history with up to 1000 records.

HD wideband audio, full-duplex hands-free speakerphone with advanced acoustic echo cancellation.

Dual Gigabit network ports with Power over Ethernet (PoE)

Integrated Wi-Fi (802.11b/g/n)

Integrated Bluetooth for easy data exchange, call transferring with iPhone or Android mobile phones as well as use of Bluetooth headsets

Advanced Megapixel CMOS camera supporting crystal-clear HD (720p) video calls using Grandstream’s SIP based free IPVideoTalk or any of the 3rdparty video calling apps in the Google Play Store, such as Microsoft Lync 2013 and SKYPE

Supports up to 4 GXP2200 Extension Modules for easy fingertip access to up to 160 contacts

Full support for all major SIP-based IP PBX/softswitch/IMS platforms such as Broadsoft, Metaswitch, Asterisk, Elastix, etc.

Auto-provisioning using the Auto-Discovery and Zero-Configuration option built into Grandstream’s UCM6100 series IP PBX Systems

Grandstream GXV3240 Specification

Protocols and Standards:  SIP RFC3261, TCP / IP / UDP, RTP / RTCP, HTTP / HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP -MED, LDAP, TR-069, 802.1x, TLS, SRTP.

Network interfaces:  Two switched 10/100/1000 Mb / s with integrated PoE.

Graphic screen:  Capacitive touch screen (5-point) TFT LCD 4.3-inch (480 × 272).

Connectivity Bluetooth: Yes,  integrated. Connectivity Bluetooth 4.0 + EDR.

Wi-Fi:  Yes, integrated. Support 802.11 b / g / n.

Ports for additional devices:  Headphones RJ9 (includes support for features in the headset Plantronics EHS), USB, SD, Mini-HDMI port plug.

Function Keys:  Eleven function keys: phone book, back, handset, mute, hold, message, transfer, conference, speaker, sent / redial, volume. Three special keys to operate the Android home, back.

Encoders / decoders Voice: Support protocols G.711μ / a, G.722 (wideband), G.726-32, G.729 (under development), iLBC, Opus (under development), DTMF in-band and out bandwidth (audio, RFC2833 and SIP INFO).

Encoders / Decoders video and features : H.264 BP / MP / HP, video resolution to 480p, 30 frames per second transmission speed up to 2 Mb / s, 3-way video conferencing, flicker removal, auto focus and auto exposure, PIP (picture in picture), display messages on the screen, lock the camera settings, record and store images, video recording, voice message indicator.

Phone Features : Hold, transfer, call forwarding (unconditional / missed / busy), parking / receive calls, 6-way conference call, simulation shared connection (SCA) / ​​simulation bridging (BLA), the virtual mode MPK, phonebook downloading (XML , LDAP), call waiting, call history, the virtual head-secretariat, flexible dial plan, share your (hot desking), personalized music ringtones, redundancy and failover server.

Typical applications : Skype, Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, news, weather, stock market, Internet radio, Pandora, Last.fm, Yahoo Flickr, Photobucket, Alarm Clock, Calendar, Google, import / export of data on your mobile phone via Bluetooth, etc. Sets API / SDK for advanced programming custom applications.

Installing applications : The ability to create and download applications for Android 4.2 and run them to compatible devices with the control configuration.

HD-quality sound : Yes, support for HD audio (broadband) in the handset and speaker.

Desk Stand : Yes, integrated stand with adjustable at two angles. Wall mounting

Additional module : Yes, the power up to 4 modules GXP2200EXT with graphical LCD screen with a resolution of 128×384 pixels, 20 speed dials / BLF with two-color LEDs and 2 navigation keys. Power consumption of less than 1.2 W per module.

QoS : Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS).

Security : user and administrator passwords, authentication, MD5 and MD5-sess configuration file with 256-bit AES encryption, TLS, SRTP, HTTPS, media access control 802.1x.

Support for multiple languages ​​: English, German, Italian, French, Spanish, Portuguese, Russian, Polish , Chinese, Korean, Japanese and others.

Updating and configuring : Upgrade the firmware via TFTP / HTTP / HTTPS or HTTP local transmission, configure group by TR-069 or encrypted XML configuration file in the AES system.

Power and energy saving mode : Universal Power Supply included: Input 100-240V AC, 50-60 Hz; output 12 V DC, 1.5 A (18 W). Technology integrated PoE + (Power-over-Ethernet) 802.3at, class 4.

Technical Specifications : Dimensions: 196.5 mm (L.) x 206.2 mm (W.) x 85.2 mm (H.) Net weight: 0.92 kg; Packaged weight: 1.45 kg

Temperature and humidity : Operating: 0 ° C to 40 ° C storage: -10 ° C to 60 ° C, humidity: 10
