Mocet IP3022 SIP Phone

Mocet IP3022 SIP Phone

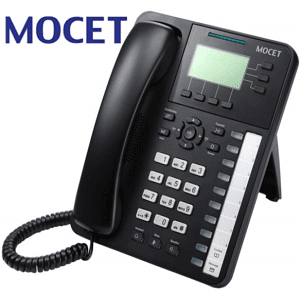

 MOCET IP3022  SIP IP Phone is easy-to-use high quality desk phone with versatile advanced features including secure calling with trusted layer security (TLS), secure real-time transfer protocol (SRTP), IP security (IPsec) virtual private network (VPN) client, and instant messaging.

Description

Mocet IP 3022 IP Phone

Based on IP3000 family technologies and design, the IP3022/21A series support up to three simultaneous lines and can be positioned in two tilt angles and has a wall mount option as well as support power choice of Ethernet PoE(*) and power adaptor. The IP3022/21A series can be configured through the backlight LCD or access to its web interface. The IP3022/21A series can be automatically provisioned from a local or Internet based server using the built-in MOCET auto-provisioning and management protocols.

The IP3022/21A series supports many advanced features including 3-way on-phone conferencing, can transfer and receive calls using industry-standard SIP protocols, and can provide built-in music-on-hold (MoH) over IP network. The phone family is also interoperable with a wide range of SIP services and servers including those based on Metaswitchâ„¢, Broadsoftâ„¢, Freeswitchâ„¢, 3CXâ„¢ and Asteriskâ„¢. Therefore, the IP3022 /21A series can be deployed and used anywhere there is a suitable local area network (LAN) with Internet access and a local or remotely hosted SIP server.



  • 128 x 64 pixels LCD display with backlit
  • HD audio chambers in handset and speaker
  • 3 SIP lines with 6 calls appearances
  • 8 programmable keys
  • Two tilt angles for stand
  • Built-in 2 Fast Ethernet & headset port
  • Support of VLAN, IPsec VPN, and IPv6
  • Complete SIP2.0 VoIP + networking protocols
  • Optional external dial module (IP-EDMX)
  • Optional EHS port for wireless BT headset
  • Elegant innovative design with the latest technologies
  • Asterisk, Broadsoft Metaswitch and Freeswitch, interoperability
  • Support different models for selection

Display



  • Graphic LCD display (128x 64 pixels) with green backlit
  • Brightness and contrast adjustable
  • Line status indication icon
  • Date and time indication
  • English and multiple(*) language support



LED



  • 1 message waiting indication LED
  • 3 line status LEDs with line keys
  • 8 LEDs for programmable keys (IP3022 only)
  • 1 LED for speakerphone



Keypad



  • soft and 3 line keys with LED
  • 12 numeric keys and 5 navigation (Volume +/-) keys
  • 8 programmable keys:
    dedicated for speed dial functions: for IP3021A
    or full programmable functions: for IP3022 only
  • 11 functional keys for speaker, mute, headset, hold, transfer, conference, message, phonebook, and redial.



Configuration and Management



  • Embedded Web (HTTP Server) for management
  • Auto-provisioning, security, encryption support
  • Remote and local configuration and upgrade through FTP, TFTP and HTTP server
  • Engineering trace log
  • Asterisk, Broadsoft, Freeswitch, Metaswitch,3CX and more SIP Server / IPPBX interoperability



Audio



  • Codecs: G.711 (A-law/ u-law), G.722, G.726-32, G.729A/B, and iLBC support
  • Individual volume settings with visual indication for handset, hand-free and ringer
  • Voice activity detection (VAD)
  • Comfort noise generation (CNG)
  • Acoustic gain and echo cancellation (AGC, AEC)
  • Adaptive jitter buffers and packet loss concealment (PLC)
  • DTMF tone generation (RFC2833, in-band and SIP-INFO)
  • Near full-duplex speakerphone



Network



  • IETF SIP V2 (RFC3261)
  • STUN NAT, DHCP, TFTP, Telnet, DNS, SNTP, HTTP, SNMPv2
  • IPv4 and IPv6 protocol
  • Security: IEEE 802.1x, HTTPs, TLS, SSL, SRTP, SIPS, VPN IPsec
  • Instant messaging: SIMPLE, XMPP



Call Features



  • 3 lines with up to 6 concurrent calls appearance
  • 3-way conference capability
  • Caller ID, call timer, CLIP/CLIR
  • Call hold, call transfer(blind and attended), call forward, call waiting with indicator tones
  • Music on hold
  • Speed dial, redial
  • Distinctive incoming call treatment
  • Do not disturb (DND)
  • Busy lamp field (BLF)



I/O Ports



  • Two 10/100M Ethernet RJ-45 ports (LAN & PC)
  • Auto sensing IEEE802.3af PoE, Class1 (IP3022 only)
  • One RJ-9 port for handset
  • One RJ-9 port for headset
  • One DC jack port for power adapter
  • One UART port for EHS / Service support



Power Adaptor



  • PA-5V500ma : AC/DC power adapter 5V/500mA or
  • A-5V2A : AC/DC power adaptor 5V/2A



Physical Specification



  • Weight of product: 850g
  • Dimension: 230 x 190 x 40 mm
  • Operating temperature : 0oC to 40oC (32oF to 104oF);
    Storage temperature: -20oC to 60oC (-4oF to 140oF)
  • Operating relative humidity (non-condensing): 15% to 85%
  • Warranty: 1 year



Conformance



  • FCC Class B and CE Class B, LVD, RoHS
