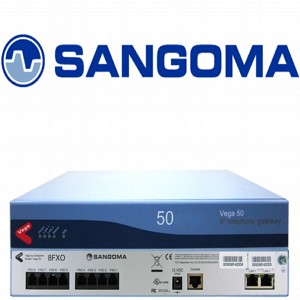

Sangoma Analog Gateway 8FXO- Vega50

Sangoma Analog Gateway 8FX0

The Sangoma Vega 50 VS0118  FXO gateway has proven interoperability with a wide range of existing telecommunications & VoIP equipment. Sangoma Vega 50 Media Gateways connect a range of legacy telephony equipment &  PSTN to IP networks.

Description

Sangoma Vega50 – 8FXO Gateway

The Vega 50 Media Gateways support up to 10 Analog FXS/FXO ports, or 8 BRI/ISDN channels on 4 physical interfaces. The following gateway configurations are available as standard:

Analog- FXO

  • 8 FXO
  • No disruption to the configuration of existing equipment
  • Flexibility & choice for call routing

Enhanced Network Proxy (ENP) (Optional)

This option enables continuity of service during WAN/SIP outage and may be configured to operate in a number of ways including:

  • Standalone proxy
  • IP device survivability
  • IP device call routing
  • Emergency call routing
  • SIP to SIP call routing

Open, Non-Proprietary Interfaces

SanAnalog Vega 50 Media Gateways support standard loop start signalling. Vega 50 Media Gateways have proven interoperability with a wide range of existing telecommunications & VoIP equipment. All Sangoma Vega Media Gateways can support SIP, H.323 & T.38 FAX. Vega50 Media Gateways can be configured for different country requirements, such as tones & line impedance.

Telephony Features

Available on FXS ports:

  •     Call Waiting
  •     Call Forward   Unconditional, Busy, No-Answer
  •     Call Transfer   Blind, Consultative
  •     3 Way Conference
  •     Do Not Disturb
  •     Message Waiting Indicator – Audible, Visual
  •     Music on Hold
  •     Executive Barge



Interfaces

  • SIP
  • H.323 version 4
  • Audio codecs:
    • G.711 (a-law/µ-law) (64 kbps)
    • G.729a (8kbps)
    • G.723.1 (5.3/6.4 kbps)
    • Clearmode
    • GSM (Optional)
  • FAX Support – up to G3 FAX, using T.38
  • Modem Support – up to V.90, using G.711
  • Up to 8 VoIP channels

LAN Interfaces

  • 2 RJ-45s, 10 BaseT / 100 BaseTX, full / half duplex
