Yealink T29P Phone

Yealink SIP-29G IP Phone

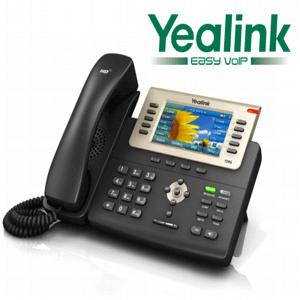

Yealink SIP-T29G IP Phone

Yealink SIP-T29G IP Phone is the most advanced model in the Yealink T2x IP terminal series. It has a high-resolution TFT color display,delivers a rich visual experience. Yealink Optima HD technology enables rich, clear, life-like voice communications.

Supports Gigabit Ethernet, a variety of device connections, including EHS headset and USB. With programmable keys, the IP Phone supports vast productivity enhancing features.

Product Description

Yealink IP Phone SIP-T29G

The SIP-T29G dual port gigabit executive IP phone offers a high resolution TFT colour display and Optima HD technology delivering a rich visual and audio experience along with a very user friendly interface. As well as support for corded and wireless headsets, the SIP-T29G also incorporates a USB port allowing Bluetooth headsets to be connected using a Yealink BT40 Bluetooth dongle and up to 6 expansion modules making this an attractive and feature-rich handset.

Features:

  • Yealink Optima HD voice
  • Dual-port Gigabit Ethernet
  • 4.3″ 480 x 272-pixel color
    display with backlight
  • Built-in a USB port, support
    Bluetooth headset (Through
    USB Dongle)
  • Up to 12 SIP accounts
  • Paper label free design
  • PoE support
  • Headset, EHS support
  • Integrated stand with 2
    adjustable angles
  • Supports expansion modules
  • Wall mountable (optional)
  • Simple, flexible and secure

Phone Features:

  • 12 VoIP accounts
  • Call hold, mute, DND
  • One-touch speed dial, hotline
  • Call forward, call waiting, call transfer
  • Group listening, SMS, emergency cal
  • Group listening, SMS
  • Redial, call return, auto answer
  • 3-way conferencing
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set date time manually or automatically
  • Dial plan
  • XML Browser, Action URL/URI

IP PBX features:

  • Busy Lamp Field (BLF)
  • Bridged Line Apperance(BLA)
  • Anonymous call, anonymous call rejection
  • Hot-desking, emergency call
  • Message Waiting Indicator (MWI)
  • Voice mail, call park, call pickup
  • Intercom, paging, music on hold
  • Call recording

Codecs and Voice Features:

  • HD voice: HD handset, HD speaker
  • Wideband codec: G.722
  • Narrowband codec: G.711(A/μ), G.723.1, G.729AB, G.726, GSM, iLBC.
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC

Network Features:

  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT transverse: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP/PPPoE
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • SRTP for voice
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication using MD5/MD5-sess
  • OpenVPN, IEEE802.1X
  • IPv6

Management:

  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
  • Auto-provision with PnP
  • Zero-sp-touch TR-069
  • Phone lock for personal privacy protection
  • Reset to factory, reboot
  • Package tracing export, system log

Physical Features:

  • Stand with 2 adjustable angles
  • Wall mountable
  • External universal AC adapter (optional):AC 100~240V input and DC 5V/2A output
  • Power consumption (PSU): 1.8-5.4W
  • Power consumption (PoE): 2.1-8.0W
  • Dimension(W*D*H*T):244mm*213mm*185mm*54mm
  • Operating humidity: 10~95%
  • Operating temperature: -10~50°C
