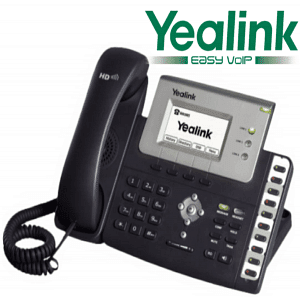

Yealink T26P IP Phone



Yealink T26P IP Phone

Yealink T26P is a professional IP phone which is designed to provide business users a cost-effective solution. Equipped with the leading voice engine (voice engine) TI VoIP helps users proficient and confident in performing common telephone tasks. It has a fashionable and sleek design, abundant telephony applications, broad interoperability with popular third-party VoIP products. At the same time offers support for leading G.722 wideband codec, which enables the use of the excellent HD Voice. In conjunction with these characteristics, the SIP-T26 definitely meets the needs of VOIP usage for businesses and ITSP.



Description

Yealink  IP Phone T26P

Yealink T26P HD sound quality

It supports advanced wideband audio codec G.722 and  speakerphone with AEC standard , thus ensuring greater clarity and sound quality.

Executive level phone

Equipped with 13 programmable buttons with stub functions with LED, 4 soft keys, allows the use of BLF, phone book in XML format, which significantly increases the efficiency of the device.

Network Features

  • SIPv1 (RFC2543), v2 (RFC3261)
  • 3 VoIP user accounts
  • NAT Transverse: STUN mode, IP Address: Static / DHCP / PPPoE
  • In-Band DTMF Out-of-Band DTMF SIP Info Proxy mode and peer-to-peer SIP link mode
  • TFTP / DHCP / PPPoE Server Telnet / HTTP, DNS Client, Server NAT / DHCP, VLAN, QoS
  • Support for PoE

Voice Features

  • Wideband codec: G.722, frequency response: 50-7000Hz
  • Narrowband codecs: G.711, G.726, G.723.1 / iLBC, GSM G.729ab and
  • VAD, CNG, AEC, PLC, AJB, AGC
  • Mode full-duplex speakerphone with AEC
  • Supports HAC (Hearing Aid Compatible)

Phone Features

  • Call hold, call waiting
  • Switching and call forwarding, caller identification
  • List of calls (up to 100 connections), do not disturb, Redial
  • Flash, speed dial, 3-way conference, voicemail, custom ringtones (MP3)
  • Voicemail, volume control, mute the microphone, speaker (speakerphone)
  • the ability to change the logo, import / export address book, import / export system log, hotline, the choice of the signal line, Polish menu
  • Address Book on more than 300 entries, support for up to 6 modules secretarial EXP38

T26P IPPBX Integration

  • SMS, BLF (Busy Lamp Field) / BLA (Bridged Line Appearance)
  • Dial Plan, Dial-now, Paging
  • Remote / Local Address Book XML
  • Call Park, Call takeover
  • Auto answer, intercom

Configuration, use

  • Firmware update: TFTP / console / Auto-provisioning
  • Auto-provisioning: TR069 option
  • Direct call without SIP proxy dialing SIP server
  • Selecting the SIP server URL

Safety

  •  SRTP (RFC3711)
  • Transport Layer Security (TLS)
  • VLAN (802.1 pq), QoS
  • Phone lock by the user (keyboard)
  • Panek Configuration Admin / user
  • Secure RTP authentication using MD5 / MD5-sess
  • Encryption configuration using the AES algorithm
  • HTTPS (server / client)

Structure

  • TI Titan chipset
  • LCD 132 x 64 with white backlight
  • 45 keys including 13 programmable, 5 LEDs
  • 1 x RJ9 headset to connect
  • 1 x RJ9 to connect wired headphones
  • 1 x RJ12 for connecting the module EXP38
  • Speaker 8 Ohm / 1Watt
  • Network card: 2 x RJ45 10 / 100Mb
  • Dimensions: 273 x 204 x 42mm
  • Net weight 1.05 kg
  • Power supply: 100 ~ 240V
  • Power supply: DC 5V / 1.2A
  • Power over Ethernet (IEEE 802.3af)
  • Relative Humidity: 10 ~ 95%
