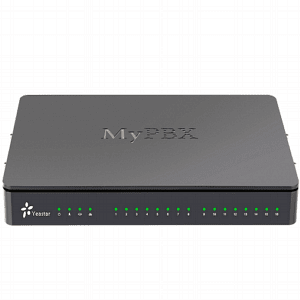

Yeastar MyPBX Standard is a PBX for SMB enterprises and branch offices of large companies. The device is able to handle from 2 to 100 members. MyPBX is a combination of traditional telephony and VoIP solutions, ideal for businesses that are not yet ready to completely migrate this IP world. Try it now and enjoy the benefits of the IP world.

Description

Yeastar MyPbx IP PBX System

Yeastar Mypbx Standard -Robust All-in-one Features
Yeastar MyPBX  Standard is a powerful all-in-one system that delivers enterprise-grade functionalities and features to SMBs. On purchasing the unit, you will have all the features at hand without extra cost.
  • Meets the highest Standards with 100 users
  • Basic call handling features
  • Advanced IP-PBX features
  • No licensing fees for full capacity

YEASTAR MYPBX FEATURES

Mypbx Customizable Interfaces

With module-based MyPBX, you can have flexible telephony interfaces combination. You might need FXS module to connect analog phones or fax machines; and you can decide what physical trunks you need in your system.Yeastar Mypbx Standard Interfaces
  • Flexible modular design
  • FXS module for analog phones or fax machines
  • PSTN, BRI, GSM, CDMA, and UMTS connectivity













Easy Management

You can manage your phone system from any web browser using an intuitive and user-friendly Web interface. It’s easy to set up the system, add users, and configure the settings. Check a few boxes, choose from the dropdown list, and fill in text fields; you will know what to do when you see it.Yeastar Mypbx Standard
  • Plug and play set-up
  • Configuration templates for IP phone batch editing







Mypbx Standard Features

Users : 100
Concurrent Calls (Max)
:
25
Analog Ports (Max)
:
16
GSM Ports (Max)
:
8
BRI Ports (Max)
:
8
E1/T1/J1
:
–
LAN
:
1 (10/100Mbps)
WAN
:
1 (10/100Mbps)
VoIP Trunks
:
64
IVR
:
32
Voicemail
:
3000min
Protocol
:
SIP (RFC3261), IAX2
Transport Protocol
:
UDP, TCP, TLS, SRTP
Management Protocol
:
–
Audio Codec
:
G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM
Video Codec
:
H263, H263P, H264, MPEG4
DTMF
:
In-band, RFC2833, SIP INFO
IP Services
:
DDNS, DHCP, Firewall, OpenVPN, PPPoE, QoS, Static IP, Static NAT, Static Route, STUN, VLAN
One Touch Record (Manual)
:
Support
Call Recording (Auto)
:
–
Redundancy
:
MyTwins
:
Support
Audio In/Out
:
–
T.38 Fax
:
Support
SMS to Mail/Mail to SMS
:
Support
Add-ons
:
–
Hard Disk
:
–
USB
:
1 (reserved)
Dimensions (L × W × H) (mm)
:
290 × 180 × 33
Weight
:
700 g
Power
:
AC 100-240V (DC 12V 5A)



Main Features

Attended Transfer Blacklist
Blind Transfer BLF Support
Call Back Call Detail Records
Call Forwarding Call Pickup
Call Routing Call Waiting
Caller ID Conference
Define Business Hours Dial by Name
DISA (Direct Inward System Access) Distinctive Ringtone
DNIS Do Not Disturb
Fax to Email Firewall
Follow me IP Blacklist
LDAP IVR (Interactive Voice Response)
Intercom/Zone Intercom Mobility Extension
Music on Hold Paging/Zone Paging
Phone Provisioning PIN User
Queue Ring Group
Skype Integration Speed Dial
Spy Functions Three-way Calling
Video Calls Voicemail
Voicemail to email Web-based control panel
